All imes-icore milling cutters / grinders can be ordered from us
sales@design-engineering.de
milling cutters / grinders
Bushings for the cutters / grinders
Accessories / spare parts
Tables
Collets spindle milling cutters
Special holders for blanks rings, bracelets, watch cases
Watch & Jewelery DE, Table made of Aluminum & Steel
Abmessungen
Watch & Jewelery DE, Table made of Aluminum & Steel
Abmessungen [BxTxH]: 728 x 680 x 814 mm Stauraum ca. 0,25m³
Loader Version
Standard / Loader
Storage box cutters: for the automatic exchange
Water tank (replacement)
Extra Wassertank
Extra Wassertank
Universal adapter for individual holders
This adapter has on one side the connection to our zero point system for the Jewelery 350i and on the other side the connection flange according to DIN EN ISO 9409-1, so that you can construct a device on this side for fastening your individual blanks and thus to the jewelry 350i can connect
CNC measuring probe
Electronic 3D edge finder for the main spindle, with cable or radio connection
-
Optimized for isel CNC machines in conjunction with isel proNC from version 1.46.10.2
-
Complete integration into isel proNC with integrated measurement functions
-
High measurement and repeatability
Features:
-
Fully automated determination of edges and corner points, center points and measuring points
-
Geometries: edges, holes, grooves, cylinders, angles, corners, etc.
-
Integrated calibration routines in isel proNC
-
Creation of your own measurement routines possible via script programming in proNC
Scope of delivery:
-
Measuring probe, calibration medium, cable connection with SAC-M8-3pin plug
Consumables
Coolant "Mill & Grind"

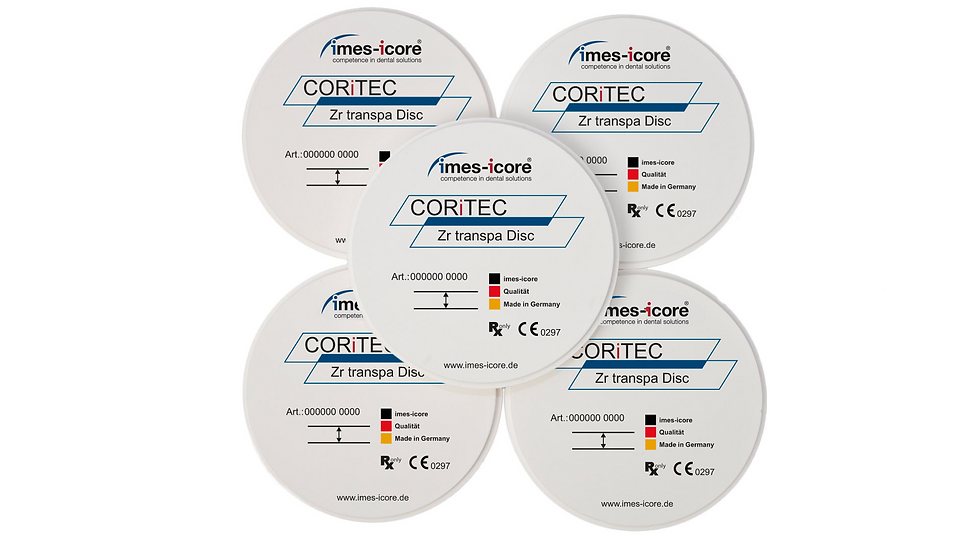

Blanks for the round holder
Polymethylacrylat
Absaugeeinheit von Staub
z.B. beim trocken Fräsen von Holz
